Default 11/18/2008

Photo #1
Winter is here.

Photo #2

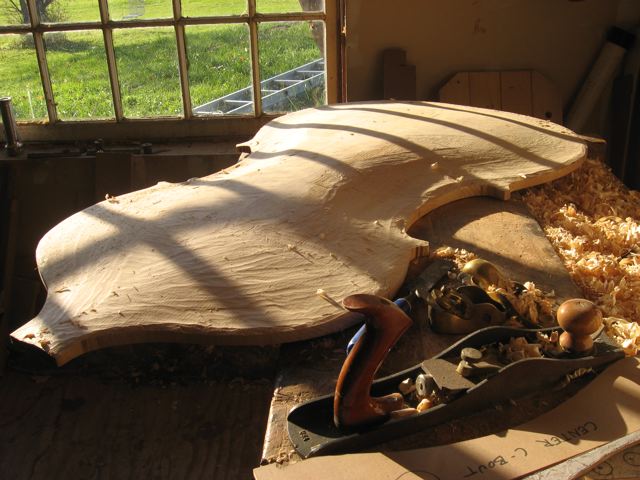

Top carving. Roughed it out, then started to work on the "east-west" or horizontal arching. Here is the C-bout arch getting close to the outline of the template. My plan is to establish the top, middle, and lower arches, along with the long arch. Then, blend them together into a beatiful bass top.

You may notice a pitch pocket of some kind has appeared in the top. It was not there when I started to carve, but slowly revealed itself as the top got closer to the finished size. I may have to do some type of repair.

Photo #3
This is my arsenal. So far I have stuck to the hand tool method for shaping the top. Doing this by hand, IMO, might be a better way to learn the subtleties of plate arching, (as opposed to using power tools).
Attached Thumbnails
Click image for larger version

Name:	IMG_3688.jpg
Views:	664
Size:	50.1 KB
ID:	737  Click image for larger version

Name:	IMG_3676.jpg
Views:	662
Size:	43.8 KB
ID:	738  Click image for larger version

Name:	IMG_3698.jpg
Views:	687
Size:	62.7 KB
ID:	739

Last edited by Craig Regan; 11-18-2008 at 01:02 PM.
